What's In The Box |

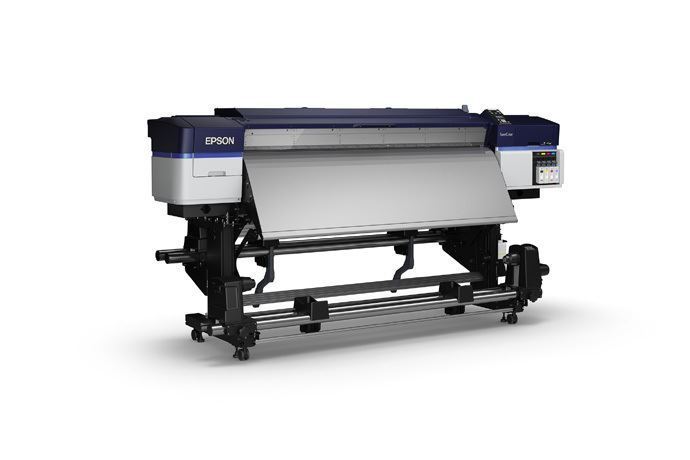

SureColor S40600 printer
Onyx GamaPrint Pro RIP
Substrate Support System
Additional Fabric Wiper and Air Filters
Full Set of Cleaning cartridges (T696000)
Waste ink Bottle
Documentation |
Technical Specifications |
|
Cutter Specifications |
Maximum Cutting Area: 54 in x 164 ft (1372 mm x 50 m)
Compatible Media Widths: 2 in to 60.2 in (5O mm to 1529 mm)
Maximum Media Thickness: 59.1 mil (1.48 mm)
Maximum Cut Speed: 58.5 in/s (1485 mm/s) diagonal
Programmable Cutting Force: 20 gf - 600 gf in 48 steps
Sheet Cutter Max Thickness: 11 mil including media release liner (backing)
Programmable Resolution: GP-GL™: 0.1/.05/.025/.0l mm; HP-GL®: 0.001 in (0.025 mm); GP-GL™: 254,508, 1016, 2540; HP-GL®: 1016
Compatible Media Types: Self-adhesive vinyl film, diamond grade**, fluorescent film, reflective film, Amberlith™, Rubylith™, sandblast resist rubber, high-intensity reflective film**, prismatic reflective sheeting**, window tint film, paint protection film**, automotive paint protection film**, etc.
Interface: USB 2.0 High-speed I Serial RS- 232C I Ethernet interface
ARMS: 5th Generation Advanced Registration Mark Sensing System
Command Modes: GP-GL™, HP-GL® (Selectable in command menu or auto detection)
Display Panel: 3" graphic LCD with comprehensive icon-corresponding soft keys
o Standard Accessories (Included):
o Super Steel Cutting Blade: CB 09UB
o Blade Holder: PHP 33-CB 09N-HS
o Water Based Fiber Tip Pen: KF 700-BK
o Fiber Pen Adapter: PHP 31-FIBER
o Power Cable, USB Cable, Software/Drivers DVD, Training DVD
Shipping Weight with Stand: 150 lbs (68 kg)
Unit Dimensions with Stand: 73.6 x 28 x48 in (1870x711 x 1219 mm) |
UltraChrome GS3 Inks |
Production capacity — high-capacity ink cartridges at 700 ml per color
Extreme color gamut — produce vibrant images using just four colors
Superior media compatibility — print on virtually any media type from adhesive vinyl to banner material
Same day lamination — first solvent printers to offer same day lamination
Environmentally responsible — no special ventilation or air purification is required.
3M MCS warranty — the most comprehensive warranty program in the signage industry is now available on all standard UltraChrome GS3 Inks
Avery ICS Performance Guarantee – Verified and tested by one of the top media manufacturers in the world
Epson S-Series Rewards program — earn up to five years of coverage simply by using genuine Epson ink and media |
PrecisionCore TFP Print Heads |
Consistent Color — efficient, precise and repeatable performance with excellent image quality
Precision — low vibration meniscus control for highly accurate dot shape and placement
PrecisionCore TFP printhead — one-inch wide print head with 720 nozzles per color
Epson Precision Dot — delivers best-in-class image quality at commercial-level print speeds
Robust Print Head Design — designed specifically for the high-demands of production environments |
Print |
|
Printing Technology |
Advanced PrecisionCore® TFP® Print Head
8-channel, drop-on-demand, inkjet Print Head
4 Color (C,M,Y,K)
Solvent Based Ink Chemistry |
Minimum Ink Droplet Size |
4.2 picoliters; Variable Droplet Technology |
Maximum Print Resolution |
1440 x 1440 dpi |
Maximum Printable Area |
63.6" |
Print Speed |
Draft - 610 sqft/hr
Production: Banner - 215 sqft/hr, Vinyl 170 sqft/hr
Quality: Banner - 170 sqft/hr, Vinyl - 140 sqft/hr |
Nozzle Configuration |
Color and Monochrome 720 nozzles per Color |
Ink |
|
Ink Type |
UltraChrome® GS3 |
Ink Configuration |
CMYK |
Replacement Ink |
Black T890100
Cyan T890200
Magenta T890300
Yellow T890400
The printer is designed exclusively for use with EPSON cartridges for greater reliability. |
General |
|
Operating Systems |
Mac OS X 10.8x - 10.11x; Windows 10, 8.1, 7 (64-bit) |
Server Systems |
Windows® 7, 8, Windows Vista® o Windows XP (64 bits) |
System Requirements |
Intel i7 or better 6GB memory recommended |
Temperature |
Operating: 50 to 95 degrees F (10 to 35 degrees C)
Storage: -4 to 104 degrees F (-20 to 50 C) |
Humidity |
Operating: 20-80%
Operating (Recommended): 40-60%
5-85% (no condensation) |
Sound Level |
Approximately 59 dB according to ISO 7779 |
Dimensions |
103" x 34" x 53" (2616 mm x 609 mm x 1346 mm) W x D x H |
Weight |
615 lb (278 kg)
|
Warranty |
Standard one-year on-site next business day service with toll-free phone support Monday thru Friday.
Optional Epson SureColor S40600 Extended service plans available for purchase for up to three years of total coverage.
Participate in the Epson S-Series Rewards program to be eligible for up to five years of total coverage. |
Extended Service Plans |
|
EPSON Extended Service Plan |
EPPS40000S1, EPPS40000S2, EPPS40000S3, EPPS40000S4 |
