| Technical Specifications |
|
| What's in the box |
Hardware:

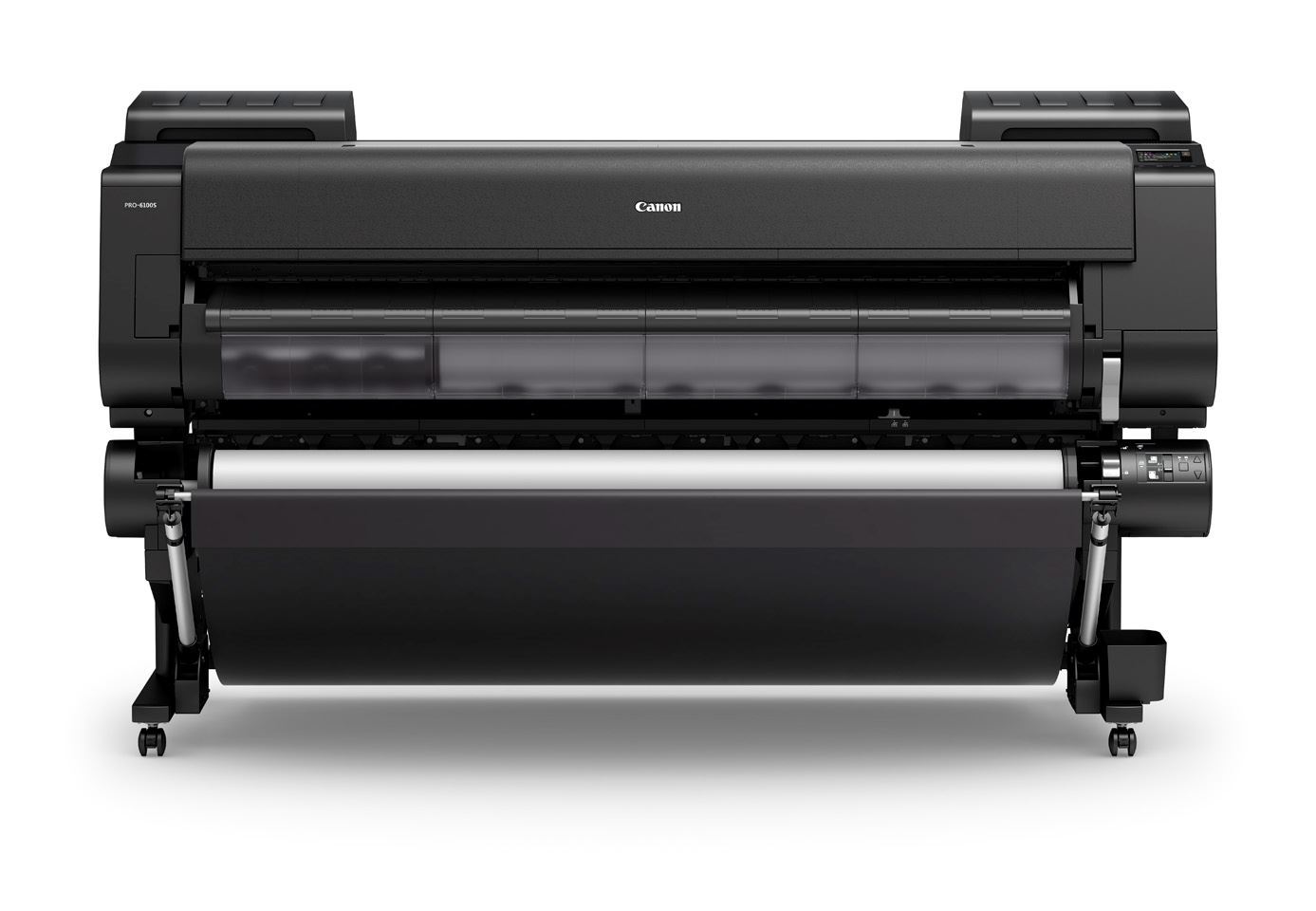

imagePROGRAF PRO-6000S 60” Professional
Production Signage Inkjet Printer
Stand, basket and legs with tools
Multifunction Roll System
Document Kit:
Quick Guide
Setup Software & User’s Guide CD-ROM
Safety and Environmental Sheet
Setup Guide and Printer Stand Setup Guide
Important Information Sheet
USB Connection Sheet
Canon USA Media Compatability List
Registration Card
Printer and Print Head Warranty Card
Call Center Notice Card
iWR Service Terms Leaflet
Starter Ink Tanks:
Matte Black (330 ml)
Photo Black (330 ml)
Cyan (330 ml)
Magenta (330 ml)
Yellow (330 ml)
Photo Cyan (330 ml)
Photo Magenta (330 ml)
Gray (330 ml)
Print Head: PF-10
Power Cord
5 Sheets, A2 size Heavyweight
|
| Print |
|
| Printing Technology |
FINE: Full-Photolithography Inkjet Nozzle Engineering |
| Head Configuration |
8-Channel Integrated Type |
| Nozzle Configuration |
1,536 Nozzles x 8 Channels, Total: 18,432
|
| Droplet Size |
Minimum 4 Picoliters per Color
|
| Maximum Print Resolution |
Up to 2400 x 1200 dpi
|
| Ink Information |
Type: Pigment Based LUCIA PRO Ink Technology
PFI-1100 (160 ml): PBK, MBK, C, M, Y, PC, PM, GY
PFI-1300 (330 ml): PBK, MBK, C, M, Y, PC, PM, GY
PFI-1700 (700 ml): PBK, MBK, C, M, Y, PC, PM, GY
|
| Media |
|
| Media Handling |
Front-Loading Automatic Roll Feed: One Roll, Front Output
Front-Loading Automatic Feed: Front Loading, Front Output
|
| Media Width |
8” - 60” (Cut-Sheet and Roll)
|
| Minimum Print Length |
8"
|
| Maximum Print Length (Single Page) |
Roll Feed: 59’ (18 m)
|
| Borderless Printing Widths (Roll Media Only) |
No Size Restriction - 0”/14”/17”/24”/36"/42"/44"/46"/48"/56"/60" + Micro Margin
|
| Media Thickness |
0.07 mm - 0.8 mm
|
| Media Core Sizes |
2” or 3” Core (with supplied adaptor)
|
| Printable Margins |
Roll Paper:
Top: 3 mm; Bottom: 3 mm; Side: 3 mm
Borderless:
Top: 0mm; Bottom: 0mm; Sides: 0mm
Cut-Sheet:
Top: 3 mm; Bottom: 20 mm; Side: 3 mm
|
| General |
|
| General Features |
60” Wide Printer with Stand, 8 Individual Ink Tanks, PF-10 Print Head (1) with Non-Firing and Compensation
Function, L-COA PRO Image Processing Engine, Color Density Sensor for Calibration
|
| Printer Memory |
3 GB (Standard)
|
| Hard Disk Capacity |
500 GB
|
| Display |
4.3” Color LCD Touch-screen
|
| Acoustic Noise |
Operation approx. 48 dB (A) (Glossy paper, Image, Print priority: Standard)
Standby: 35 dB (A) or less
|
| Power Supply |
AC 100–240 V (50-60 Hz) |
| Power Consumption |
97W or less
2.0 W or less（Wired LAN connected）
0.3 W or Less (Executive Order Compliant) |
